Civil Engineering

See how infrastructure really behaves

Field-deployable full-field measurement for bridges, concrete, and dynamic events.

Talk to an Engineer

On this page

Sub-mm

Crack resolution

Non-contact

No instrumentation

Field-ready

Portable systems

1000s fps

Dynamic capture

The Problem

LVDTs and strain gauges leave blind spots across bridge decks, concrete surfaces, and seismic test specimens, exactly where load rating and rehabilitation decisions get made.

The Solution

Three ways Trilion supports civil programs

Bridge Load Testing

Global deformation plus localized strain at joints and welds, with data that backs load rating and rehab decisions.

Crack Analysis

Sub-millimeter crack initiation and propagation on concrete, masonry, and reinforced structures.

Seismic & Dynamic

High-speed DIC captures transient response on shake tables and blast specimens at thousands of fps.

Built for the field

“Portable ARAMIS and TRITOP systems deploy where the work happens. No fixed infrastructure required.”

VDI/VDE 2634 compliant · NIST-traceable

Ready to see your structure clearly?

Talk to an engineer about bridge testing, crack analysis, or dynamic assessment.

Talk to an Engineer See Photogrammetry

Featured Resources

Case studies, white papers, and application notes

Browse all →

Published Paper

Full Field Deformation Measurements During Seismic Loading of Masonry Buildings

This article demonstrates the potential of the Digital Image Correlation (DIC) method to provide accurate full field ...

Purpose-built systems for your application

Measure strain and movement across an entire surface—without contact.

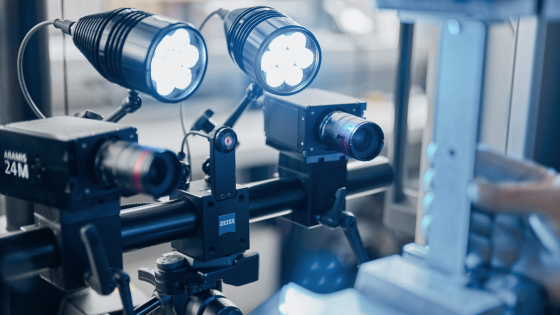

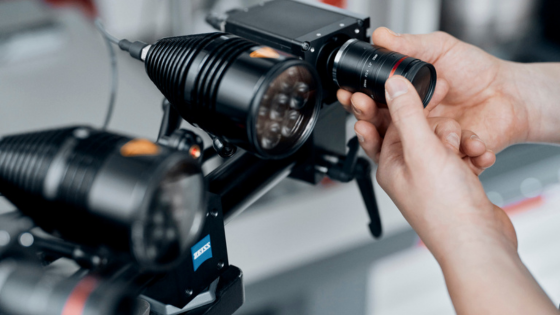

ZEISS ARAMIS Optical Strain

ZEISS ARAMIS Optical Strain uses camera-based Digital Image Correlation (DIC) to measure full-field 3D strain, displacement, and deformation without contact, from material coupons to full-scale structures.

Learn more →
