ARAMIS 1
Entry-Level 3D Optical Testing
Compact single-sensor DIC for standardized material testing. Tensile, compression, shear, and bend tests.
ZEISS ARAMIS 1
Seeing the whole picture.

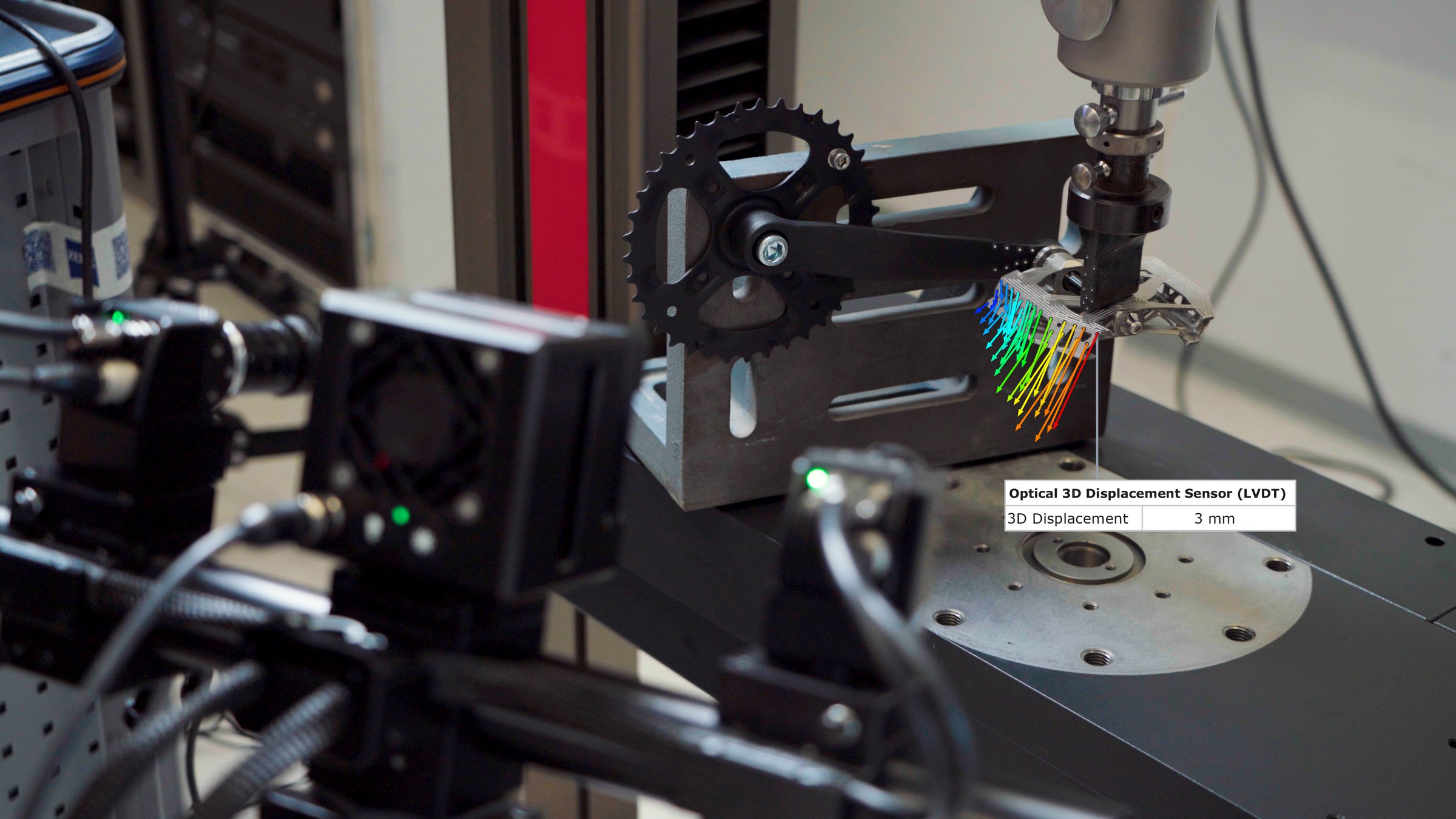

ZEISS ARAMIS 1 is an optical measurement system used to capture strain, displacement, and deformation in three dimensions. Its stereoscopic camera technology enables non-contact measurement of deformation during quasi-static tests — including tensile, compact tension, and 3- and 4-point bending tests, delivering full-field data where traditional strain gauges and extensometers fall short.
The all-in-one optical sensor

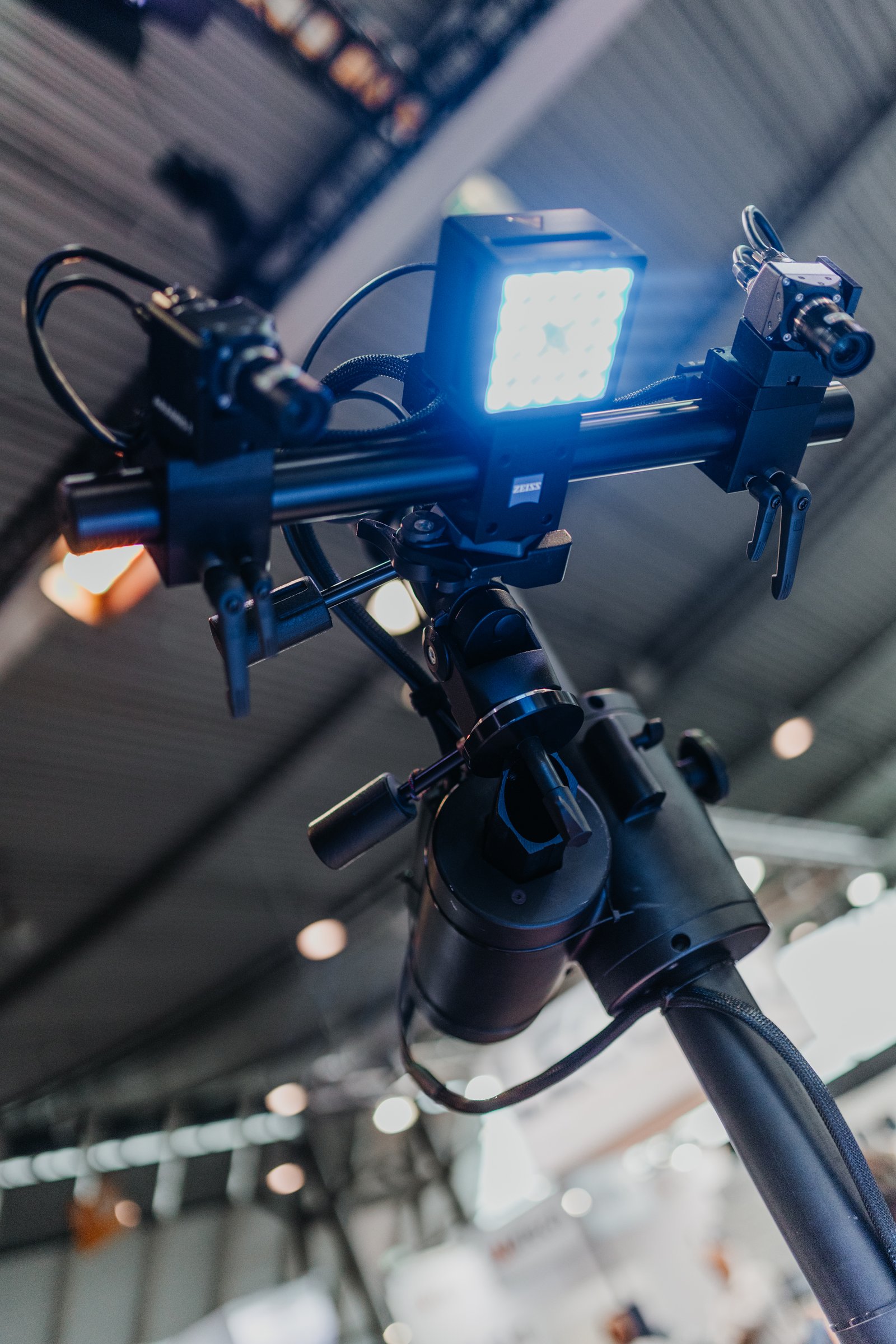

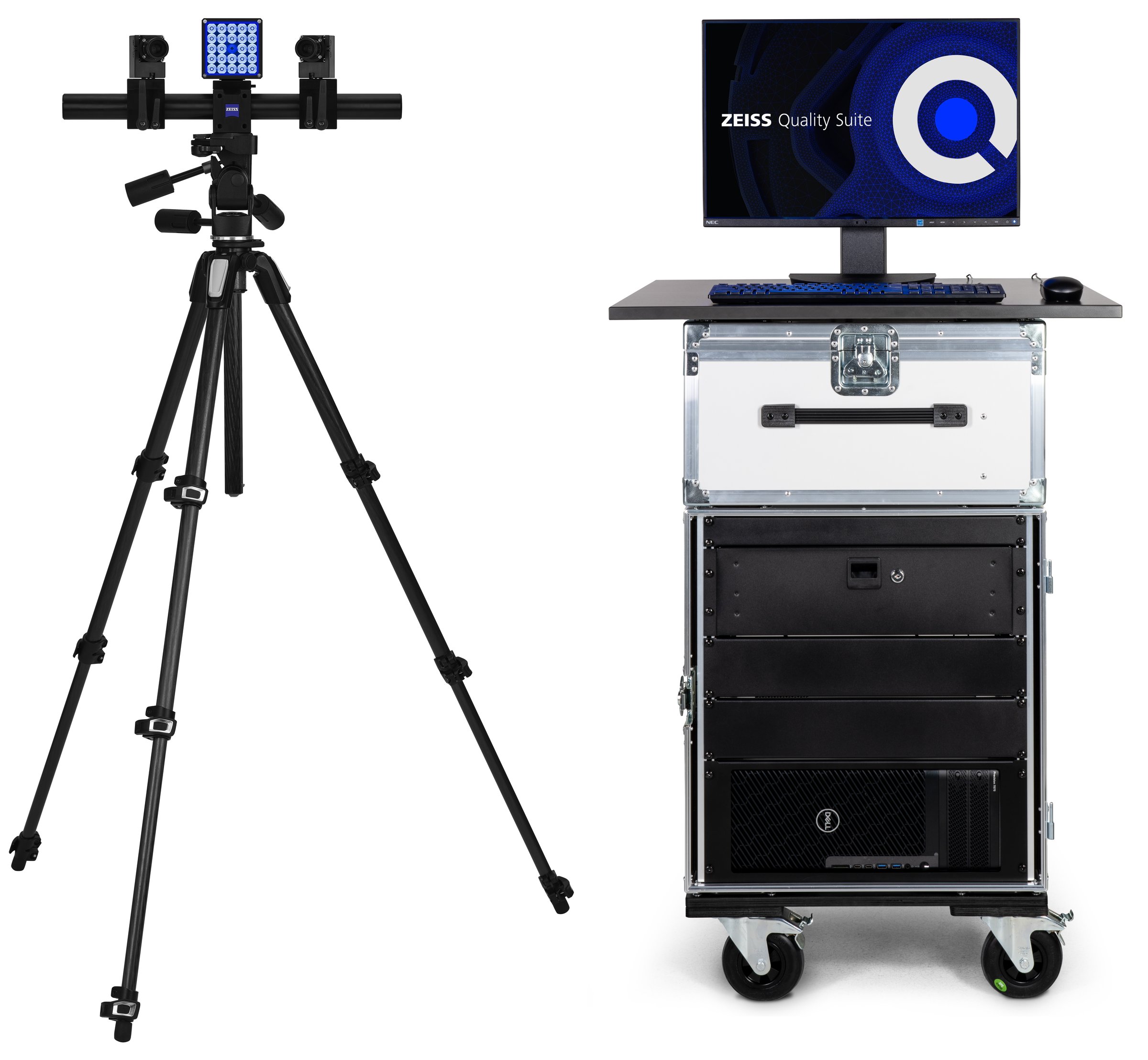

ARAMIS 1 combines two metrology-grade cameras into a single, factory-calibrated sensor head. Set it up, align it to your specimen, and start measuring — no point-by-point instrumentation, no surface contact, no gauge length limitations. You see the entire specimen surface, every test, every time.
Key benefits
- Powerful measurement capabilities — captures 3D strain, displacement, and deformation in a single test.
- Non-contact — no glue, no gauges, no influence on the specimen.
- Superior measurement range — from microstrain through ultimate failure, on the same setup.
- Stability & robustness — built for daily use in materials labs and test cells.
- Certified performance — traceable accuracy you can defend in reports and audits.
Technical specifications
| Parameter | Specification |
|---|---|
| Strain measurement range | 0.005 % – 2,000 % technical strain |
| Field of view | 50 × 40 mm up to 500 × 425 mm |
| Measurement volume | 50 mm to 500 mm length |
| Sensor configuration | Stereoscopic dual-camera |
| Lenses | Two pairs of metrology-grade lenses included |
Applications
- Tensile testing, including necking and failure analysis
- Biaxial tension tests

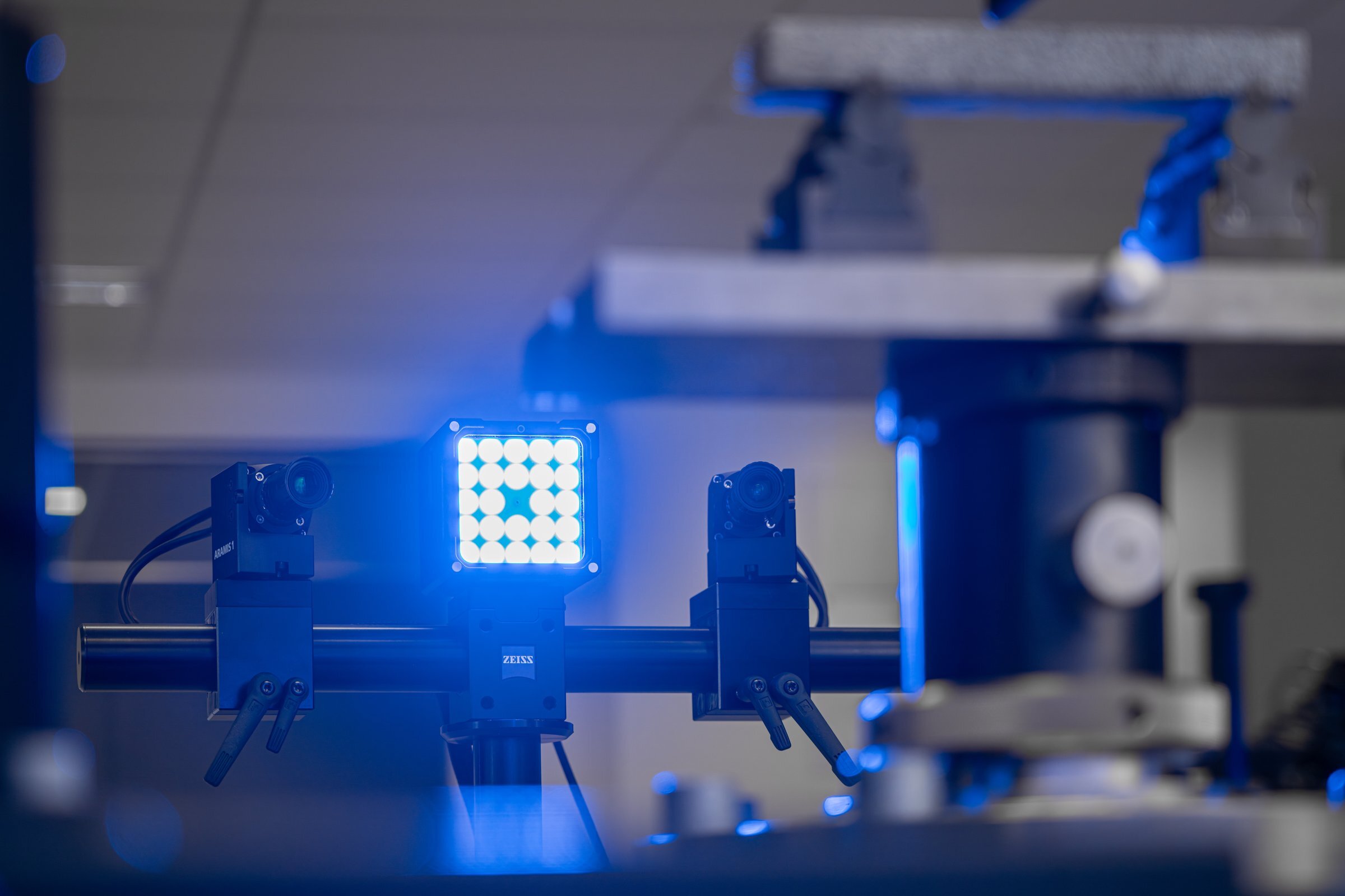

- 3-point and 4-point bending tests
- Small-component mechanical and thermo-mechanical testing
- Material characterization and model calibration (e.g., FEA validation)
Industries: automotive, aerospace, materials research, electronics, medical devices, academic and government labs.
The perfect match — ARAMIS 1 + ZEISS CORRELATE
ARAMIS 1 is driven by ZEISS CORRELATE, the digital image correlation (DIC) and point-tracking software that turns raw image data into full-field strain and displacement results. Upgrade to ZEISS CORRELATE Pro for parametric workflows, reusable templates, and dedicated apps that standardize testing across your team.
Why customers choose ARAMIS 1
Strain gauges give you one number at one location. ARAMIS 1 gives you the whole picture — every point on the specimen, every frame of the test — so you can see exactly where, when, and how your material fails. It's the fastest path from a test specimen to validated material data.
Industries & Applications
Related Systems
Systems commonly specified alongside ARAMIS 1 for materials laboratories.
Digital Image Correlation
ARAMIS Adjustable 12M
Flagship 3D DIC System
Learn more →
Photogrammetry
XiGage 3D Extensometer
Non-Contact Video Extensometer
Learn more →
Accessories
ARAMIS Controller
Sync, trigger, and power for ARAMIS systems
Learn more →
Software
ZEISS CORRELATE
Full-field DIC strain and motion analysis
Learn more →Upcoming Events
Training, workshops, and industry events
Trilion Academy
Trilion Academy
ARAMIS Tech Day
Join us for our in-person ARAMIS Tech Day course on November 11-12 in Seattle, WA, from 9:30 am to 5:00 pm. Our team of ...
Register →No events match this filter. View full schedule →
Questions
ARAMIS 1 FAQ
Is ARAMIS 1 only for small specimens?
It is optimized for coupon and small component work on a load frame, which is where most material characterization happens. For larger parts or variable measuring volumes, look at ARAMIS Adjustable 12M or 24M.
Can it replace our video extensometer?
In most laboratory tensile work, yes, and it gives you the full surface rather than one gauge length. Our comparison against extensometers covers the trade-offs. If you specifically want a drop-in non-contact extensometer, see XiGage.
How is this verified for audit-ready reporting?
Through the t.Cert workflow in the Trilion Automation Suite, which verifies the system against a NIST-traceable t.Check gauge block and produces automated pass and fail reports aligned to ASTM E83-25.
Can we rent this or have Trilion run the test?
Yes to both. System rental covers short programs and evaluation, on-site measurement puts our engineers on your test, and offsite lab services run it in our lab. On-site training is available when you want the capability in house.
Ready to see ARAMIS 1 in action?
Talk to an engineer about how this system fits your testing program.
